BRITISH PATENT GB 1301488 2013

Autonomous vessels, robotic systems for endurance blue water cruising





Certificate of filing patent application GB1301488, published 17 September 2014





TITLE: AUTONOMOUS VESSEL ROBOT AI SYSTEM



PATENT ABSTRACT



A boat, ship, or robot vessel, that by virtue of a combination of the technology described herein: computers, sensors, navigating equipment, terrestrial radio and satellite communications, mechanical, electrical and hydraulic actuators, photovoltaic arrays and wind generators/turbines and/or optionally, multi-hull design, is capable of superior course keeping and of navigating the high seas at speeds typically between 5 and 10 knots using only energy harvested from nature and without the aid of a human captain, or any other human sailors onboard the vessel, in a manner that such truly autonomous vessel is able to calculate, plot and execute course keeping that utilises energy for propulsion more efficiently, and where the autonomous navigation system is compliant with the Collision at Sea Regulations ([COLREGS] as apply to all vessels) and other rules of the oceans and harbours, as imposed by international agreements and treaties, and local port authorities when entering ports/harbours, docking or leaving harbours – utilising the onboard artificial intelligence thus created.





PATENT DESCRIPTION: AUTONOMOUS VESSEL ROBOT AI SYSTEM

SUMMARY or OBJECT OF THE INVENTION


It is the object of the present invention to provide a truly autonomous platform for ocean going marine unmanned vehicles which platform addresses the limited performance of prior art unmanned surface vehicles proposed for: research exploration, warfare, other persistent monitoring applications at sea and cargo or passenger vehicles. The platform is to provide extended endurance at practical speeds, 365 days a year and 24 hours a day operation or as required, programmed or reprogrammed en-route, taking advantage of the collision regulation compliant navigation system and artificial intelligence for superior navigation and course keeping.

BACKGROUND FIELD OF THE INVENTION

The present invention relates to manned robot assisted vehicles (RAVs) and unmanned, autonomous, waterborne vehicles for marine use, herein referred to as unmanned surface vehicles (USVs) or unmanned underwater vehicles (UUVs). In particular, although not exclusively, the invention relates to unmanned surface ocean vehicles utilising renewable energy, sourced in a manner which enables extended periods of operation at respectable velocity, for remote ocean surface and subsurface surveillance and survey, as may also be developed for, or applicable to cargo and passenger vessels, which requires a level of artificial intelligence.

DISCUSSION OF THE BACKGROUND ART

Ships, boats and other waterborne navigable vehicles frequently sink or run aground due to poor course or expedition planning and monitoring. In particular human error is to blame for many sinkings, such as the Costa Concordia and Baltic Ace tragedies in 2012, both of which were caused by human error.

The bridge of most modern ships and many larger yachts and fishing boats are well equipped with: radio, gps, sonar, radar, chart plotter, autopilot, weatherfax and the like, some of which is integrated, but still vehicles that are so well equipped fail to follow the best navigable course to their destination and worse, collide with other waterborne vehicles.

Even with so many electronic aids to navigation, captains of ships do not know where other ships are headed and cannot react to the discovery of a vessel on a collision course or the fact that an intended harbour destination may not have a berthing place for them, until discovery by radio lookouts, direct radio communications or radar contact. Such discovery is dependent on a vessel's crew noticing electronic warnings or radio communications and taking/making the appropriate course correction, or speed reduction, to include giving appropriate signals according to the collision at sea regulations.

Commercial shipping in particular would benefit from a higher degree of automation aboard their vessels; such that the vessel itself might take the appropriate avoidance action, speed adjustment, or course correction autonomously for the safety of the vessel, should for any reason the human crew fail to respond. At the very least an artificially intelligent computer based system might give powerful visual and audible warning to any human crew, alerting them to any impending danger. Such a system may be optionally engaged by the human operators or owners. The problem being that no such system exists at this time where traditional navigation instruments/aids and engine controls are not designed for the purpose of autonomous running.

Military, governmental and commercial civilian uses for USVs in warfare, exploration, research and monitoring applications at sea are manifold. The ability of conventional platforms, such as boats, ships and buoys, to gather data and information in these applications is limited by the platform’s endurance, typically limited by diesel fuel capacity and/or battery capacity, particularly when compared to the vastness of the world's oceans. Ships are expensive to build, crew, fuel and operate. Buoys, free-floating or tethered, provide only local Ocean monitoring coverage. Oceanographic data may be gathered remotely by expensive earth orbiting satellites but the information gathered thereby is limited in definition and scope.

Sensors and instruments commercially available today to gather oceanographic and hydrographic data and information as deployed on conventional military and civilian scientific survey vessels and UUVs are well developed and capable. Modern radio and satellite communications and information technology may be used to fully exploit such onboard instruments and sensors, as described in U.S. Patent Number: 5,894,450, attributed to Schmidt et al. However, it will benefit such exploratory missions if the cost of such operations is reduced by incorporating said sensors and instruments onto a vehicle platform that is inexpensive to run by virtue of the ability to utilise free energy from nature effectively.

Conventional unmanned surface vehicles, such as that described in U.S. Patent Number: 5,713,293 attributed to Shiffler et al., or the Spartan "scout" vehicle proposed by the US Naval Undersea Warfare Centre of Newport, Rhode Island, USA, typically employ conventional fossil fuelled power units that limit range and endurance to the size of a vehicle’s onboard fuel tanks. Conventional unmanned surface vehicles and drones operating in a semi-autonomous mode are also subject to the threat posed by collision or close encounters with larger vessels and cannot provide other vessels they encounter with the correct international collision warning signals as prescribed by the Merchant Shipping (Distress Signals and Prevention of Collisions) Regulations 1996, bringing into force the Convention on the International Regulations for Preventing Collisions at Sea (1972), as amended by the International Maritime Organisation with Resolution A.910(22), the latest amendments coming into force internationally in November 2003.

The use of solar energy to supplement conventional energy sources, such as fossil fuels or wind energy, for marine vessels has been demonstrated by International Patent Publication Numbers: WO 98/21089 and WO2005/012079 attributed to Robert Dane et al, which describes rigid wings that are used as sails incorporating on their foil surfaces photovoltaic solar panel arrays. This/these system(s) though is/are constrained as to effectiveness by incorporating the wind and solar energy collector elements as one in a solar/wing inclined pivotally along one axis. Such a system cannot fully harness the separate energy factions in nature to maximum advantage, where the wind angle may not allow the solar collectors to operate efficiently by pointing them toward the sun at 90 degrees, and vice versa, where the ideal sun angle may not allow the sail function of the solar/wing to orient itself at the correct angle to the wind for good sail efficiency.

At this time designs for vessels powered by photovoltaic arrays alone have proven themselves to be incapable of continuous cruising speeds above 3 knots. The latest solar ship, the “Turanor PlanetSolar,” is also the largest and most advanced, but even using sliding wing panel extensions and electronic (immovable) solar panel monitoring, this vessel could not better 3 knots average during a circumnavigation. Nor could the “Transatlantic Sun21” before it during a transatlantic crossing. The performance of such vessels is not attractive to commercial or military operators. The power to weight ratio of these vehicles is less than 1 kilowatt per ton. The design of the hull and electric motor propulsion system in relation to the energy collectors is therefore of paramount importance and needs to be addressed.

Vessels using the “Walker Wingsail” system as described in US Patent Numbers US4467741 and US4856449 attributed to John G Walker, or Harbor Technologies Steerable Wing system as described in US Patent Number US7461609 attributed to Mark T Ott et al, cannot provide truly autonomous navigation, because they harness wind energy as physical force rather than electrical energy, so would need considerable additional energy collection devices onboard to provide energy for electrical instruments and other necessary operational equipment to be able to carry out surveying missions, requisite communications and as may be required, operation of weaponry. Additionally, when the wind dies down the vehicles so propelled have no means to store energy as a buffer for operation when becalmed.

Artificial intelligence requires a high level of autonomy, which must include the ability to engage with the environment locally optically, audibly and in the case of shipping, using sonar, radar, laser and infrared sensors.

Take for example a human; a human must be able to harvest energy from nature to be able to carry out his (his=his/her) mission. A human requires sensors to be able to interact with his environment and to be able to use gathered information to direct himself to carry out his mission – which may be nothing more than survival of the species.

Since this patent relates to waterborne vehicles, consider a dolphin. A dolphin uses energy derived from nature (fish), which it converts to propel itself, to be able to find more energy, detect and evade predators and find a mate to perpetuate the species. The mission of the dolphin as an autonomous subject may differ from the missions of the present patent subject, but the concept is the same, to include magnetic sensing of the earth’s magnetic field for the purpose of navigation.

Logic dictates that for Intelligence to have developed in any organism, mobility is essential, and the two are interlinked. An immobile organism like a tree, for example, does not need to be intelligent, as we understand the meaning of intelligence, to exist. Combining mobility and energy collection from nature together, is a step forward in the evolution of man made artificial intelligence.


DISCLOSURE OF THE INVENTION

This/these present invention(s) or combination of inventions, overcome(s) the identified shortcomings of existing technology as follows:-



TO BE PUBLISHED ON THE 17th SEPTEMBER UNDER NUMBER GB2511731





PATENT CLAIMS:  AUTONOMOUS VESSEL ROBOT AI SYSTEM



THE INVENTION(S) CLAIMED IS/ARE:



1. A navigable waterborne vehicle embodying ...............................







TO BE PUBLISHED ON THE 17th SEPTEMBER UNDER NUMBER GB2511731








By way of an example of the above 'patent' technology in action, and in no way limited to such dedicated or specific design, reference is made to a proposed yacht to incorporate the invention(s) optionally in any combination that may thus be suitable for hydrographic, oceanographic and military operations, where the hull is SWASH style with moveable, hence active outriggers in relation to a main central submerged hull, the objective being to be able to trim the vessel as it deploys energy harvesting equipment that is necessary to achieve energy autonomy, as opposed to able to navigate without a crew autonomously, which is also a feature of such a marine robot.



The basic design of this SWASH vessel is to have wind turbines located to the rear of the vessel and solar panel arrays mounted high on a lightweight structure as shown, several meters above the sea, with one fixed (central) panel and two moveable wings. The wind turbines are placed to the rear on a boom that may be raised and lowered according to weather conditions, to avoid shading the solar arrays for most of the daily operation cycle and damage that may be caused by storms. Likewise, the solar arrays track insolation and fold to avoid storm damage, sensors providing information as to the vessels real time environment. This example uses two large wind turbines to obtain high cruising speeds. Other examples use smaller wind conversion machines with many multiples, with lesser performance as a result.



This vessel might easily be an ocean going tanker or cruise ship, where the proportions of the active hull(s) and the size of the wind and solar energy harvesting devices is smaller pro rata. Or where the ship is so large that stabilizing outriggers may not be needed.



LEFT: This diagram illustrates mid-range (partially) raised turbines in a high beam wind, the vector causing roll to port (the vessel is shown heading toward us). The autonomous trimming system compensates for this running condition using the active outriggers, by raising the starboard outrigger out of the sea and lowering the port into the sea. The main hull of the vessel then remains vertical, the deck horizontal.  ABOVE RIGHT: A similar situation applies in this depiction, except that the wind is faster, as in a storm and coming from the port side. For this reason the turbine boom has been lowered to reduce roll, while the port outrigger has been raised out of the sea to take away buoyancy on that side, to effect vertical running. By this means the ship can trim itself to harvest as much energy from the wind as it is safe to do, while still maintaining the best running speed in any given weather situation.







Here is another example of the same vessel design heading directly into or away from the wind, with the horizontal axis (vertical sweep bladed) turbines at 90 degrees to the direction of travel ABOVE LEFT & RIGHT: Here the conditions are such that the active hulls must be in the sea to give a comfortable stable ride for any crew - or simply to maximize on energy harvesting - especially from the solar panel arrays. The design of this vessel is © August 2014.





ABOVE LEFT: In this picture, conditions are such that the yacht hull is balanced so well that it does not need to have either the port or starboard outriggers in the sea as stabilizers. This will reduce the running drag of the vessel to the absolute minimum (as a mono-hull) - unfortunately, not all of the time. ABOVE RIGHT: Compare the wetted surface area of all three hulls in the water, with the single hull on the left. To effect such running, requires precision sensors and feedback, allied to dedicated trimming mechanics.

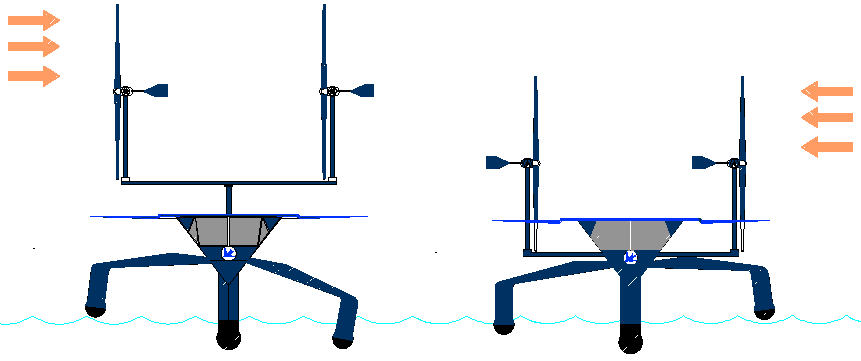

ABOVE LEFT: The yacht shown above has mid-range (partially) raised turbines in a high beam wind (they can go much higher), the vector causing roll to port, where the vessel is shown heading towards us. In addition, the solar arrays are tilted down on the starboard side and up on the port side, which causes additional air drag, hence heeling to port. The autonomous trimming system compensates for this running condition using the active outriggers, by raising the starboard outrigger out of the sea and lowering the port into the sea. The main hull of the vessel then remains vertical and the yacht can continue to harvest more energy from nature than it might had the outriggers not been moveable and designed to compensate in this manner. The need for such mechanism is inherent in any vessel designed to capture significant amounts of wind energy for propulsion.



ABOVE RIGHT: A similar situation applies in this depiction, except that the wind is faster, as in a storm and coming from the port side, causing roll to starboard. With the wind speed much higher, the turbine boom needed to be lowered to reduce roll, while the port outrigger has been raised out of the sea, to effect vertical running. By this means the yacht can trim itself to harvest as much energy from the wind as it is safe to do, while still maintaining comfortable conditions for a crew - or if unmanned, simply to maintain a higher average mission speed. The design of this vessel is © August 2014 and please note that the design features of this yacht are post application and on their own do not reveal sufficient information of the invention to make sense (be workable) unless read in conjunction with Patent Specification GB2511731, the description and claims therein.
