Researcher: Dr Wasif Naeem (EPIC)

Funded by the EPSRC February 2011 - September 2012 (£101k, EP/I003347/1)

Introduction

Aim and Objectives

The aim of this project is to design and develop an ODA system primarily for an uninhabited marine craft. The evasive manoeuvres will be based on marine 'rules of the road' or collision regulations (COLREGs) on prevention of collision at sea defined by the International Marine Organisation. The ODA strategies that will be developed herein will be directly addressing one of the shortcomings of the current generation of unmanned surface vehicles, however, it could also be employed in manned vessels and other land based vehicles. The majority of the existing motion planning strategies either ignore parameters such as ship dynamics, environmental conditions and COLREGs or treat them on an ad-hoc basis. It is envisaged that this project will bridge this gap by considering these factors and thus automating this vital navigation component. In order to achieve this, multi-objective optimisation will be employed which will satisfy the criteria as specified above to determine a feasible path. A vision-based obstacle detection algorithm together with a laser range finder will also be investigated for close-range encounters and integrated with the path planning module.

1. A comprehensive literature review is being carried out by the PhD student, Sable Campbell.

2. 2 conference papers have been accepted in refereed international conferences.

3. An invited journal paper entitled "COLREGs-based Collision Avoidance Strategy for Unmanned Surface Vehicles" has been submitted to the IFAC Mechatronics Journal.

4. A talk was given at the Knowledge Transfer Network Workshop (Aerospace, Aviation and Defence), Bridging the Autonomous Divide, in London in May 2011. Details can be found here.

1. A Post doctoral Research Assistant, Dr Mamun Abu-Tair, commenced on July 1, 2011 to work on object detection using a camera mounted on a pan and tilt platform combined with a laser range sensor.

Dr Abu-Tair will develop video processing algorithms for obstacle detection and classification in real time. A risk assessment methodology will be developed to classify potential collisions and integrated with path planning methods.

Good progress has been made on developing COLREGs-compliant path planning algorithms. Currently, modified forms of A* are being developed in addition to integrating the dynamics of various types of vessels.

A ship simulator package, 'Virtual Simulator' has been procured for training and generating videos to be used for obstacle detection purposes.

For obstacle detection, the hardware include a high-definition camera in conjunction with a laser range sensor. Standard background subtraction techniques along with Kalman filter based prediction algorithms are employed to estimate the current position of the obstacle and its projected position in the future.

1. Naeem, W, Irwin, GW and Yang, A, "COLREGs-based Collision Avoidance Strategy for Unmanned Surface Vehicles", Mechatronics 2011, DOI information: 10.1016/j.mechatronics.2011.09.012

2. Naeem, W and Irwin GW, "Evasive Decision Making in Uninhabited Maritime Vehicles", In Proceedings of the IFAC World COngress, Milan, Italy, Aug/Sep 2011.

Obstacle Detection and Identification System

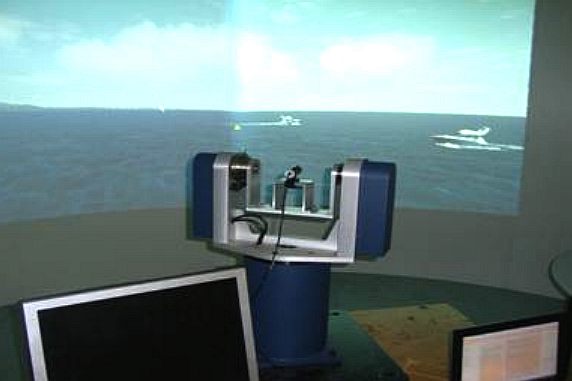

A Collision Avoidance system for Unmanned Maritime Vehicles has been designed and implemented. The proposed system employs a high definition video camera and a laser range sensor mounted on a pan and tilt device to detect obstacles in the vicinity of the ship. The reasons behind employing the pan and tilt devices are (a) to increase the coverage range and (b) to act as a stabiliser for the high definition video camera and the laser sensor mounted on it. Figure 1 shows the proposed system in operation.

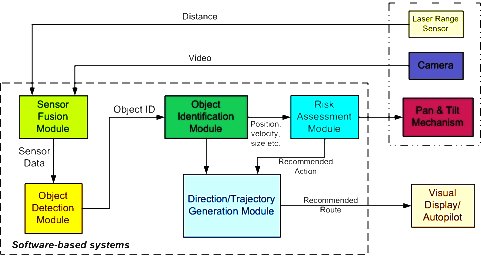

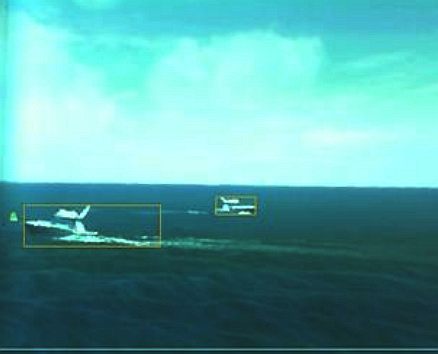

Additionally, different software based subsystems have been implemented for the proposed solutions including Obstacle Detection/identification, Risk Assessment Unit and prediction subsystems. An extensive performance evaluation of the proposed system in virtual maritime environments has been conducted. Figure 2 shows the obstacle detection and identification subsystem has successfully detected the two cruisers present in the scene in real-time.

Figure 3 shows the captain radar screen. The figure illustrates this scenario in which the risk assessment unit requests the pan and tilt device to re-scan sector 2. The request can be seen at the top of the virtual map and will be highlighted for the operator.

1. Campbell, S, Naeem , W and Irwin, G, W, "Improving the Autonomy of Unmanned Surface Vehicles through Intelligent Collision Avoidance Behaviours", Submitted to IFAC Journal of Annual Reviews in Control, 2012.

2. Campbell, S and Naeem, W, "A Rule-Based Heuristic method for COLREGS-compliant Collision Avoidance for an Unmanned Surface Vehicle", Submitted to 9th IFAC Conference on Manueovring and Control of Marine Craft, Arenzano, Italy, September 2012.

3. Abu-Tair, M and Naeem, W, "A Decision Support Framework for Collision Avoidance of Unmanned Maritime Vehicles", Submitted to 9th IFAC Conference on Manueovring and Control of Marine Craft, Arenzano, Italy, September 2012.

The aim of this paper is to report the preliminary development of an automatic collision avoidance technique for unmanned marine craft based on standardised rules, COLREGs, defined by the International Maritime Organisation. It is noted that all marine surface vessels are required to adhere to COLREGs at all times in order to minimise or eliminate the risk of collisions. The approach presented is essentially a reactive path planning algorithm which provides feedback to the autopilot of an unmanned vessel or the human captain of a manned ship for steering the craft safely. The proposed strategy consists of waypoint guidance by line-of-sight coupled with a manual biasing scheme. This is applied to the dynamic model of an unmanned surface vehicle. A simple PID autopilot is incorporated to ensure that the vessel adheres to the generated seaway. It is shown through simulations that the resulting scheme is able to generate viable trajectories in the presence of both stationary and dynamic obstacles. Rules 8 and 14 of the COLREGs, which apply to the amount of manoeuvre and to a head-on scenario respectively are simulated. A comparison is also made with an offline or deliberative grid-based path planning algorithm which has been modified to generate COLREGs-compliant routes.

EPSRC Reference:

EP/I003347/1

Title:

COLREGs-based Evasive Decision Making in Maritime Vehicles

Principal Investigator:

Naeem, Dr W

Other Investigators:

Researcher Co-investigators:

Project Partners:

Department:

Electronics Electrical Eng and Comp Sci

Organisation:

Queen's University of Belfast

Scheme:

First Grant - Revised 2009

Starts:

01 February 2011

Ends:

30 September 2012

Value (£):

101,323

EPSRC Research Topic Classifications:

Control Engineering

Image & Vision Computing

EPSRC Industrial Sector Classifications:

Transport Systems and Vehicles

Related Grants:

Panel History:

Panel Date	Panel Name	Outcome
22 Jul 2010	Materials, Mechanical and Medical Engineering	Announced

Summary on Grant Application Form

Unmanned surface vehicles (USVs) are routinely being deployed in applications such as remote sensing, surveillance, coast patrolling and providing navigation and communication support to unmanned underwater vehicles (UUVs). In many instances, they are remotely operated to perform a specific mission in open or confined waters. The intelligence of these vehicles primarily reside in the navigation, guidance and control (NGC) systems design. Ideally, the vehicle needs to operate without any human intervention. This means that the vessel's onboard control system must be self reliant and able to maintain and supervise each onboard component. Having said that, even with the most advanced NGC design, the craft cannot be fully autonomous without the presence of an obstacle detection and avoidance (ODA) system. Studies have shown that, in manned vessels, more than 60% of casualties at sea are caused by collisions. In addition, it has been found that human error is a major contributing factor to those incidents. This could be due to an ever-decreasing number of crew members adding more responsibilities per person. For uninhabited surface craft, this cannot be overlooked as their collision with other manned ships could endanger human lives. Hence a human operator is always required to maintain a constant lookout for any potential obstacles. The aim of this project is to design and develop an ODA system primarily for an uninhabited marine craft. The evasive manoeuvres will be based on marine 'rules of the road' or collision regulations (COLREGs) on prevention of collision at sea defined by the International Marine Organisation. The ODA strategies that will be developed herein will be directly addressing one of the shortcomings of the current generation of unmanned surface vehicles, however, it could also be employed in manned vessels and other land based vehicles. The majority of the existing motion planning strategies either ignore parameters such as ship dynamics, environmental conditions and COLREGs or treat them on an ad-hoc basis. It is envisaged that this project will bridge this gap by considering these factors and thus automating this vital navigation component. In order to achieve this, multi-objective optimisation will be employed which will satisfy the criteria as specified above to determine a feasible path. A vision-based obstacle detection algorithm together with a laser range finder will also be investigated for close-range encounters and integrated with the path planning module.

Key Findings

- Research in autonomous obstacle detection and motion planning techniques for manned and unmanned marine vehicles has been carried out which is of great use for the safety of marine vessels.

- A COLREGs-compliant path planner (R-RA*) has been developed. Although a number of path planning strategies exists but they all need to be modified for COLREGs compliance for application to marine vehicles.

- Training of PhD students as well as Research Fellow on advanced autonomous systems in the field of unmanned vehicles which will help to increase the skills of the workforce to improve the competitiveness of UK maritime industry.

Potential use in non-academic contexts

Hardware and software developing during the course of this project has the potential to be used by unmanned surface vehicles manufacturers as the current available technolgoy is very expensive.

Impacts

No information has been submitted for this grant.

Sectors submitted by the Researcher

Aerospace, Defence & Marine; Environment; Information & Communication Technologies; Transport
