TOYOTA - SOLID STATE BATTERY TECHNOLOGY

Electric vehicle instant refuelling and battery range extenders











MARCH 12 2013



Toyota aims to commercialize solid-state batteries around 2020 and lithium air batteries several years later, as successors to today's lithium ion batteries.

The solid-state batteries will be three or four times more powerful than lithium ion batteries, while lithium air will achieve a fivefold increase in output for the same weight.

Both technologies have advantages over the lithium ion and nickel-metal hydride batteries used in hybrid and electric vehicles. They are smaller, use fewer costly materials such as rare earths and have lower internal resistance.

Toyota unveiled a prototype of its all-solid-state battery in Japan in 2010. In solid-state batteries, engineers replace the liquid electrolyte used in lithium ion batteries with a solid one.

The positive electrode, negative electrode and solid electrolyte of the prototyped cell are made.



http://www.electric-vehiclenews.com/2013_03_01_archive.html

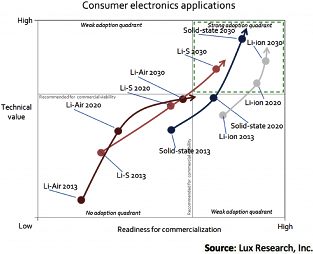

Lux Research Inc. solid state batteries and the market





DECEMBER 2010

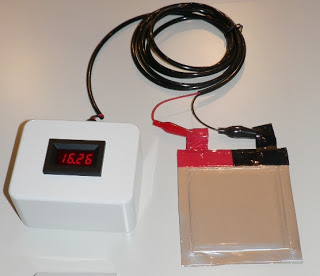

Toyota Motor Corp unveiled a prototype of its all-solid-state battery in Japan. It is a laminated cell measuring about 10 x 10cm.

Four sets of positive electrode layers, solid electrolyte layers and negative electrode layers are laminated, and the average voltage of the cell is 14.4V (3.6V x 4). Because Toyota exhibited the cell right after it was charged, it output a voltage of 16.26V (4.065V per layer).

The positive electrode, negative electrode and solid electrolyte of the prototyped cell are made by using lithium cobalt dioxide (LiCoO2), graphite and sulfide, respectively.

Toyota is actively engaged in the development of all-solid-state batteries and lithium-air batteries as next-generation batteries. Especially, when an all-solid-state battery is in an ideal state, its lithium spreads faster than electrolyte, making it theoretically possible to realize a high output power.

Furthermore, all-solid-state batteries are safer than organic electrolytes, which burn at high temperatures. And because they do not contain a liquid material, their packages can be simple.

Toyota confirmed that the prototyped all-solid-state battery can be used at a temperature of 100°C. At this temperature, existing lithium-ion rechargeable batteries using electrolytes cannot be used because their electrolytes boil.

All-solid-state batteries have a problem that a material is produced in a chemical reaction between the boundary surfaces of positive electrodes and solid electrolyte, increasing resistance. To solve this problem, Toyota reduced the resistance of the boundary surfaces by 99% by coating the surfaces of positive electrode materials with ceramics with help from the National Institute of Materials Science



http://www.electric-vehiclenews.com/2010/12/toyota-announces-4-layer-all-solid.html







Systeme Bluebird, the instant cartridge energy exchange system for Formula E cars of the future

Head on view of a prototype Formula E design with the Bluebird™ instant

refueling system incorporated. (see plan and side views below)





INSTANT PIT STOP RECHARGING FOR FORMULA E CARS



A high speed development of patent GB2253379 has yielded a chassis design for Formula E cars that does not radically change the aerodynamics, seating or weight distribution of a Formula E racing car. In fact the weight distribution can be improved over Formula 1.





CURRENT PRODUCTION BATTERY CAPACITY EXAMPLES

.

.

.

.

.

MAKE

MODEL

ENERGY kW

TYPE

MASS Kg

.

.

.

.

BYD

e6

  48.00

LiFePO4

 - -

Ford

Focus

  23.00

Li-ion

     272.00

Mitsubishi

MiEV

  16.00

Li-ion

   - -

Nissan

Leaf

  24.00

Li-ion

   300.00

Renault

Fluence

  22.00

Li-ion

   250.00

.

.

      .

.

     .

.

.

.

.

.



Li-ion SPECIFICS Ref: Wikipedia



specific energy

100–265 W·h/kg

(0.36–0.95 MJ/kg)
energy density

250–730 W·h/L

(0.90–2.23 MJ/L)
specific power ~250-~340 W/kg





Formula E teams and motor manufacturers may avail themselves of a free developer License from Bluebird Marine Systems Ltd, for the purpose of evaluating the technology.





Side view of a prototype Formula E design with the Bluebird™ instant

refueling system incorporated.





Plan view of a prototype Formula E design with the Bluebird™ instant refueling system

incorporated. Please note that these designs are © Bluebird Marine Systems Ltd 2013.







UTILITIES



Bluebird Marine Systems (BMS) is looking to conduct a feasibility study on high speed cartridge refueling in cities, side by side with a distribution supply network. BMS is looking for collaborative risk share partners and academic institutions interested in reducing pollution. Enquiries from energy generation companies are particularly welcomed, with a view to increasing profitability via load-leveling.









Bluebird battery cartridges   Contact BMS Design:  Email Brian or Leslie for information of the Bluebird instant refuelling system   or phone UK:  Bluebird cartridge exchange system

Contact Licensing:  Email Bluebird Marine Systems Ltd, for your free developer license

+44 (0) 1323 831727

+44 (0) 7842 607865

   Bluebird solar panels  Intelligent Battery Support System    Blue bird electric motors trademark logo









ENERGY LINKS:



ENERGY GENERATING-DISTRIBUTION UTILITIES







FORMULA E LINKS:



Birmingham Super Prix return and the Formula E series

Bluebird™ FE instant pit stop recharging system for Formula E cars*

Bluebird GTL*

Dallara

Drayson

Formulec

Pit Stops - servicing and history of the sport

Spark Racing Technology

Sustainable Championship

Team China Racing



* Note, there is no connection between the Bluebird™ FE system and the Bluebird GTL team





Bluebird recharging system concept Formula E racing car Bluebird instant pit stop recharging system, Formula E concept design
Formula E instant refuelling system concept Bluebird patent design



The world's fastest electric circuit racers need a system to recharge batteries instantly during pit stops. The Formula E concept design above incorporates the patent Bluebird™ instant energy transfer system - allowing EV refuelling in around 10 seconds. Get your free developer License from Bluebird Marine Systems Ltd.
