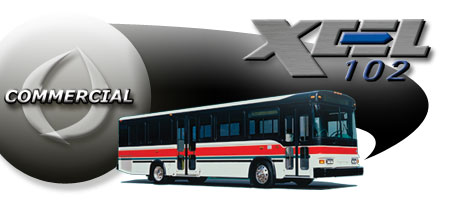

Blue Bird Corporation's Xcel 102

To meet the changing needs of the commercial bus industry and its customers, Blue Bird Corporation has introduced the all-new Xcel 102, a wider, more spacious transit and shuttle bus with an appealing price tag.

Manufactured for the transit and shuttle markets, the Xcel 102 has updated and improved features, including more interior space, wider doors and improved driver ergonomics.

The Xcel 102 is the first bus in the ten-year market to have a 102" width. The increased width allows for a larger landing area, open accessibility for wheelchairs and more interior space. The 35" floor height and two-step entry provide easier boarding and exiting along with increased headroom.

The Xcel 102 has replaceable, flexible lower skirts, which allow the panels to be replaced easily and quickly. The standard rear roof exhaust keeps the Xcel 102 clean and looking like new, and the advanced electrical system meets current SAE J1939/1587 standards.

The Xcel 102 boasts a new dash design, easy to read guages and a re-designed driver's area, all for a better driving experience.

The Xcel 102 is available in three sizes: under 30', 35' and 40'.

Blue Bird Corporation continues to set industry standards with its innovative design and manufacturing of school buses, commercial buses and Wanderlodge motor coaches. Founded in 1927, Blue Bird has nearly 3,000 employees and four plants in two countries. Blue Bird has an extensive network of dealers and service parts facilities across the country.

2003 Xcel 102 Model Highlights

• 102" width.

• Two step entry.

• Replaceable lower skirt panels.

• Three body lengths.

• OEM installed air conditioning.

• Driver ergonomic dash.

• Purpose built chassis.

• 80" interior height.

• Large transit-grade solid glass windows.

Chassis Standard Equipment

• Michelin 275/70R 22.5 radial tires.

• Hendrickson 2-bag air ride suspension/front & rear.

• Tilt and telescopic steering column.

• 200-amp Leece Neville alternator.

• 105-gallon fuel tank capacity with right side fill.

• 16.5 x 6 front brakes/16.5 x 8.62 rear brakes.

• Front tow eyes and rear tow hooks.

• 13,200# Meritor front axle/23,000# Meritor rear axle.

• ABS Interlock brakes.

• Two stage air cleaner.

• Battery disconnect switch.

• Roof exhaust.

Body Standard Equipment

• Carrier heavy-duty EM-17 air conditioning system.

• Dash air conditioning.

• Replaceable lower skirts.

• 35" Bode outward opening entrance door.

• Large transit grade solid glass windows.

• Ergonomic dash design with 32 panel indicator light panel.

• SAE J1939 and 1587 load centers.

• Integrated flourescent lighting with advertising racks.

• LED exterior lighting.

• Bostrum air driver's seat.

• Intermittent windshield wiper/washer.

• ADA entrance handrails.

• B& R exterior mirrors.

• Silicone heater hoses with constant torque clamps.

• Formica interior.

• Special needs accessibility.

Dimensions and Weights

Exterior -

• Length: Under 30'/35'/40'

• Width: 102"

• Height: 128"

• Wheelbase: 150/217/273 inches

Axles -

• Front: 13,200 lbs.

• Rear: 23,000 lbs.

• Design Weight Rating: 36,200 lbs.

Seating Capacity (varies by floor plan) -  27-49 passengers
